Dryer Cylinder For Paper Machinery Dryer Section
  • Shengxing
  • Dandong
  • 90 days
  • 100 sets/90 days

Building area over 9200 square meter for the producing of dryer cylinder for paper machinery dryer section. There are more than 40 sets jumbo machine tools for turning, milling, shaver, grinding, drilling. We are the pioneer in this industry.

Dryer Cylinder For paper machinery dryer section


Dryer Cylinder For paper machinery dryer section is a key part of paper drying.

It is used in drying part of a paper production line. Working with hot steam from steam boiler, dryer cylinder dry wet paper sheets, then the dry paper sheets can be reeled into jumbo rolls.

The function of the Dryer Cylinder For paper machinery dryer section is to dry the moisture in the paper and finish the paper surface.

dryer cylinder for paper machinery

dryer section

Parameter of the Dryer Cylinder For paper machinery dryer section


Diameter
(mm)
Design Pressure
(MPa)
Material Hardness
HB
Web Width
(mm)
Shell Thickness
(mm)
Roughness Working Speed
(m/min)
1500 0.3-0.8 HT250-300 190-240 350-1000 20-30 0.2-0.4 200-1200
1800 0.3-0.8 HT250-300 190-240 350-1000 23-35 0.2-0.4 200-1200
2000 0.3-0.8 HT250-300 190-240 1350-5000 24-38 0.2-0.4 200-1200
2500 0.3-0.8 HT250-300 190-240 1350-5000 24-46 0.2-0.4 200-500
3000 0.3-0.8 HT250-300 190-240 1350-5000 28-54 0.2-0.4 200-600
3660 0.3-0.8 HT250-300 190-240 1350-5000 33-65 0.2-0.4 200-1200
3680 0.3-0.8 HT250-300 190-240 1350-5000 33-65 0.2-0.4 200-1200

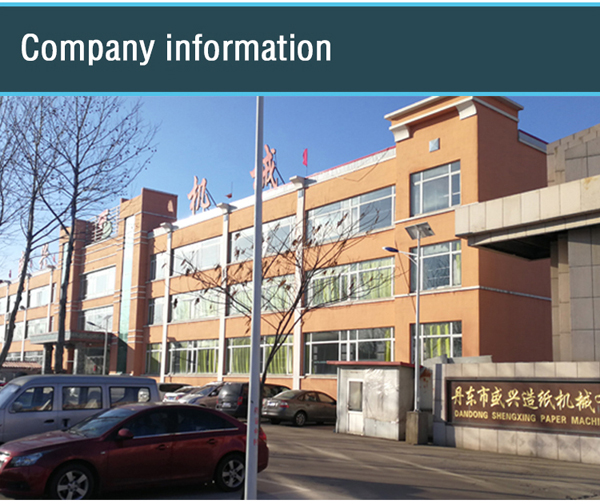

Company profile for Dryer Cylinder For paper machinery dryer section

dryer cylinder


Dandong Shengxing Paper Machinery Co.,Ltd machining workshop:

1. Building area over 9200 square meter.

2. There are more than 40 sets jumbo machine tools for turning, milling, shaver, grinding, drilling.

3.We provided 6 bridge cranes and the largest loading of the bridge crane is 32 tons.

4.We can process the max diameter of dryer cylinder is 4000mm and the longest workpiece is to 12000mm. The heaviest work piece is up to 50 tons.

5. The biggest balancing capacity is 50 tons. The production capacity of our company is leading in the industry.

6.The only manufacturer of paper machine dryers cast iron dryer cylinder who gained ASME U stamp certificate and PED certificate from TUV.

7. We are the approval manufacturer for Voith, Valmet and Andritz Gouda etc world famous dryer manufacturers.


dryer cylinder for paper machinery

approval manufacturer of dryer cylinder for world famous brand

dryer section


Packing and delivery for the  Dryer Cylinder For paper machinery dryer section

1. by wooden strips covered the dryer cylinder

2. by plastic wrap covered on the outside of the wooden strips

3. by wooden pallet on the bottom of the dryer cylinder

4. by rope tie the dryer cylinder tightly on the container



dryer cylinder

RFQ for Dryer Cylinder For paper machinery dryer section:

1. For commercial offer, we need to know diameter, face length,  material requirement, pressure, speed, produce which type of paper

     If the drawing can be provided, it will be better

2. We gained PED and ASME certificate, we can have U stamp on the cylinders.

3. We offer OEM service, logo can be casted on the head.

4. payment term is 40% in advance, balance when goods ready before shipment

5. Lead time is around 90 to 120 days after deposit.
